Character Analysis

Introduction

I have separated my work into sections for ease of flow. All Python code is included in this article. Observations of data are shown in the histogram and heatmap below.

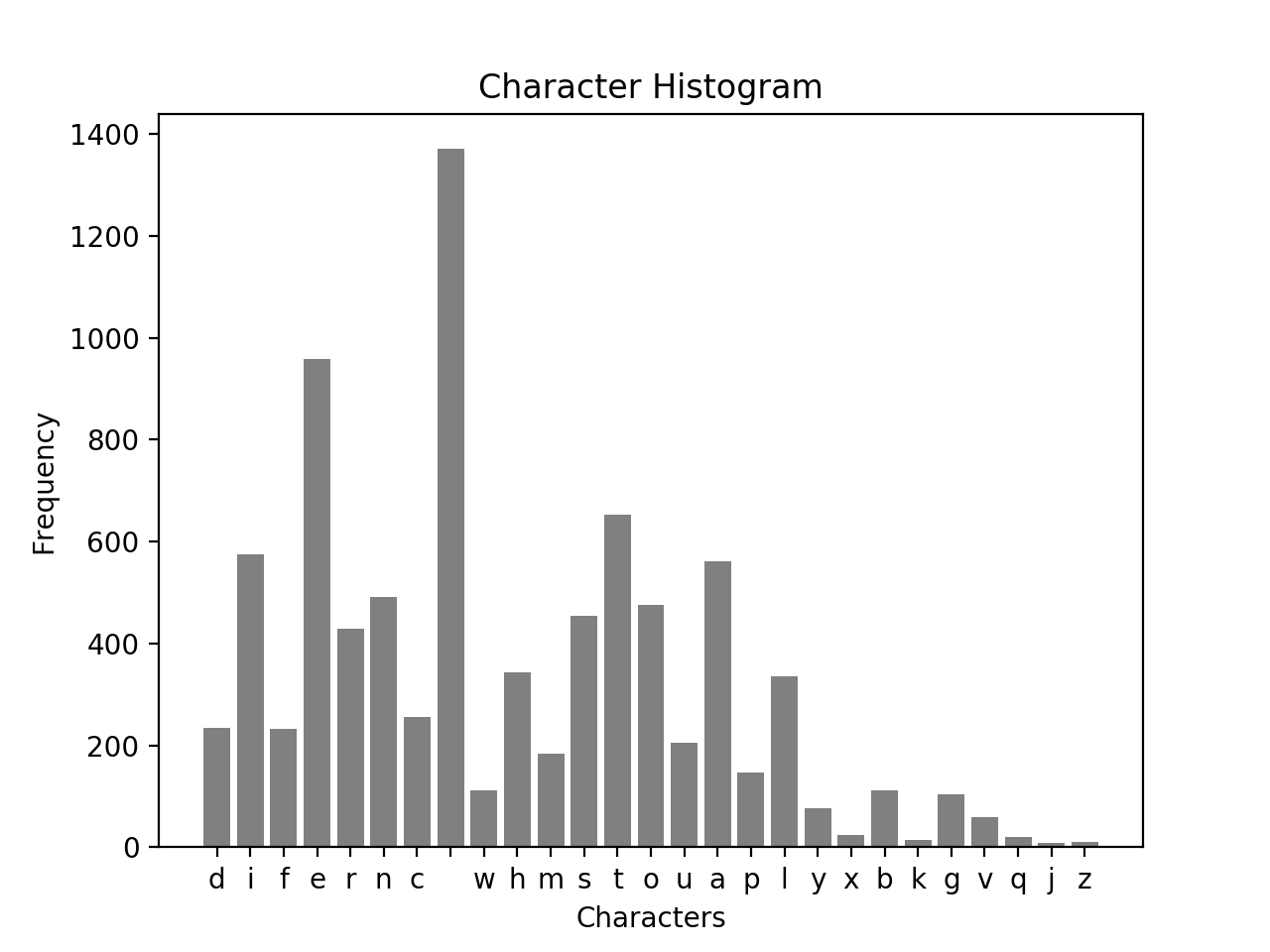

Plot of Histogram

Histogram Observations

Here are a few observations about the histogram above:

  • $space\ character$: The space character is by far the most frequent. This makes sense since after each word, a space appears
  • ${j, z, x, k}$: Characters such as $j$, $z$, $x$, and $k$ are low frequency — not often present in common words
  • $vowels$: It makes sense for the frequency of the vowels to be higher than consonants given how English is structured

Heatmap of Character Transitions

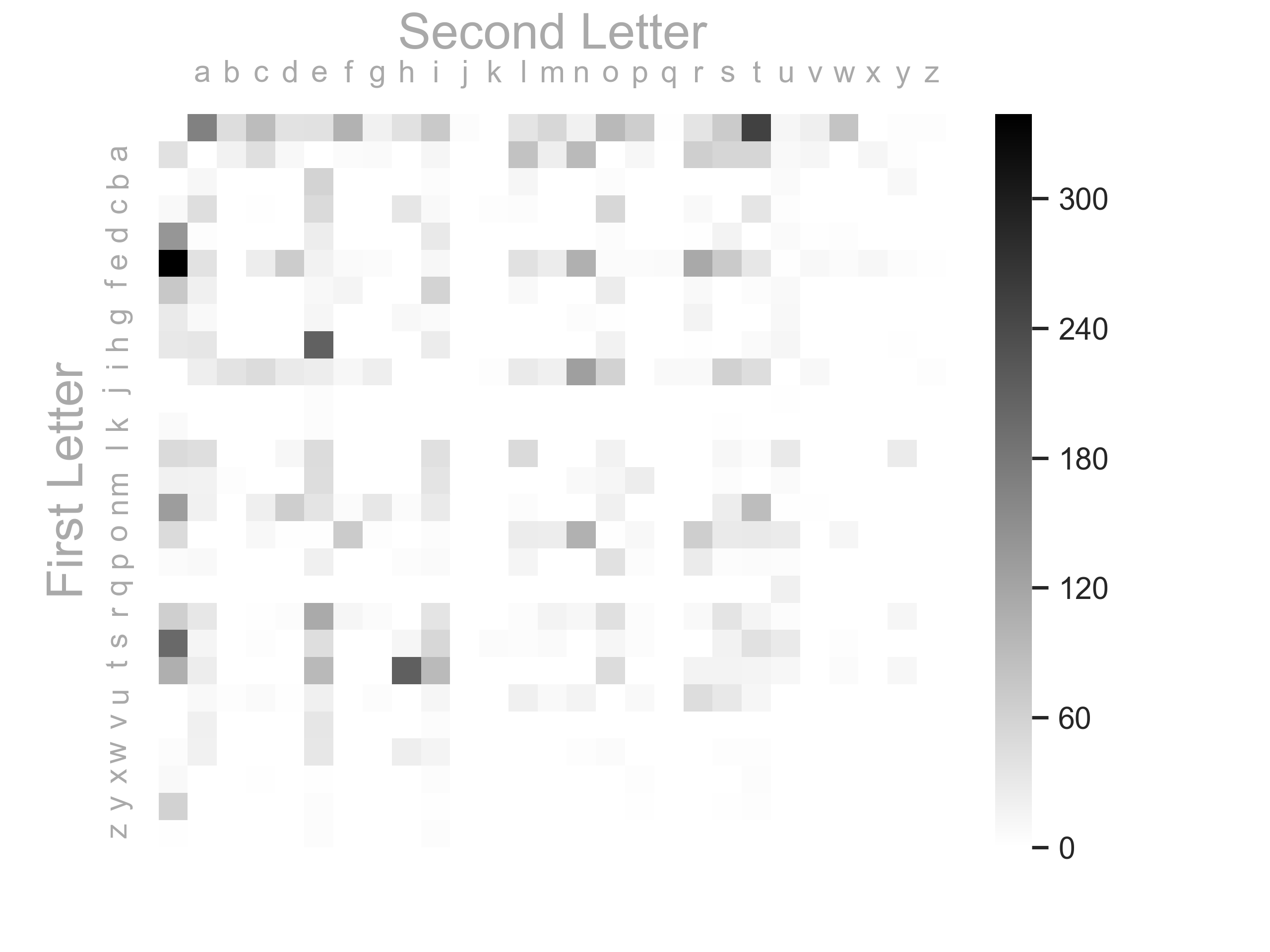

The heat map below visually represents the frequencies of the transitions $c_i \rightarrow c_{i+1}$ where $c_i$ is the $i^{th}$ character in the supplied text file.

Heatmap Observations

Here are a few observations about the heatmap above:

  • $Common\ Occurences$: Some common occurrences: $t \rightarrow h$, $i \rightarrow n$, $n \rightarrow t$, $r \rightarrow e$, $t \rightarrow i$
  • $Spaces$: As expected the row and column of the $space$ is quite active — this makes sense since all words start and end with a $space$
  • $Bare$: It’s interesting but not unexpected that the right bottom right is quite bare — very low frequencies later in the alphabet

Robustness Parameter

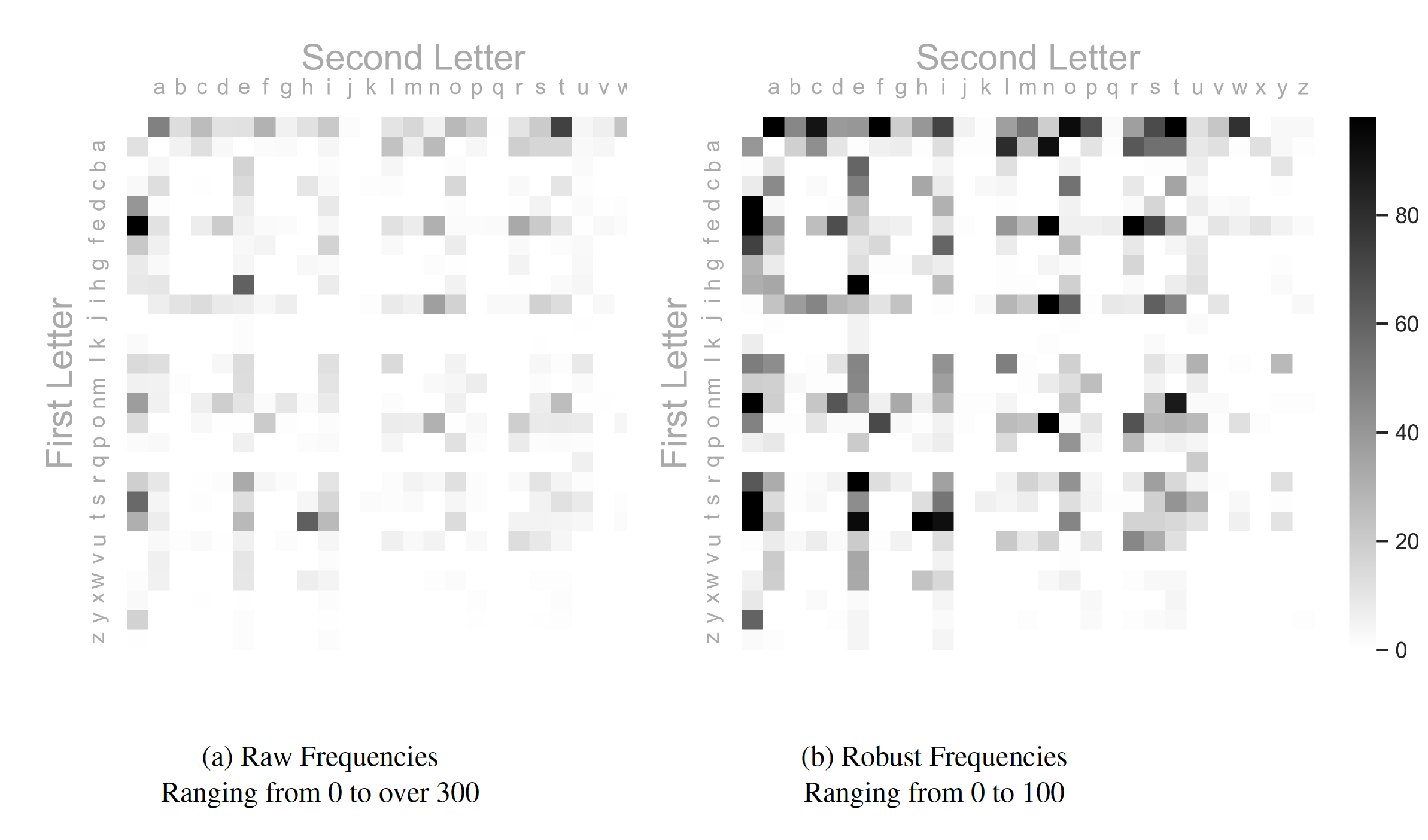

The heatmap above is actually using a robust=True parameter that normalizes the frequencies into a small range in order to improve the visualization. This is an improvement over the heatmap with the original frequencies. See below for the difference between the $RAW$ heatmap and the $ROBUST$ heatmap. More visual information can be obtained by using the $robust$ parameter since the `interesting’ events are much more pronounced.

Appendix A — Code

Packages

Below are important packages that I am importing for the program to work properly.

import pandas as pd
import fileinput as fi
import matplotlib.pyplot as plt
import seaborn as sns
import string

User Defined Functions

I have defined several functions used by the $\verb|main()|$ function:

def read(file):
  """Reads given file and parses characters

  Args:
    file: the text file to be parsed
  Returns:
    charArr: parsed character array
  """
  return [i for line in fi.input(file) for i in line]

def count(array):
  """Counts characters and creates freq table

  Args:
    array: character array of text
  Returns:
    freq: dictionary that represents freq table
  """
  return {c: array.count(c) for c in array}

def partition2(array):
  """Works similar to Mathematica's partition function
    but slightly differently. This function will create
    a string that combines each pair of characters in
    order to be hashed through by the count function.

  Args:
    array: this array
  Returns:

  """
  return [str(array[i]) + str(array[i + 1]) for i in range(len(array) - 1)]

def dict_print(d):
  """Print function specifically for dictionary

  Args:
    d: dictionary
  Returns:
    None: only prints out the contents of the dictionary
  """
  [print(key[0] + ' --- ' + key[1] + ' :\t' + str(val)) for key, val in d.items()]

def to_dataframe(d):
  """converts the dictionary of transitions to a dataframe from which
    can be turned into a heatmap

  Args:
    d: dictionary
  Returns:
    df: dataframe
  """
  # :: Create dataframe
  df = pd.DataFrame(columns=('First', 'Second', 'Frequency'))

  # :: Initialize matrix
  alpha = list(string.ascii_letters)[:26]
  alpha.append(' ')
  for i in alpha:
    for j in alpha:
      df = df.append(pd.Series([i, j, 0], index=df.columns), ignore_index=True)

  # :: Pivot our dataframe to make a matrix for heatmap
  df = df.pivot("First", "Second", "Frequency")

  # :: Add relevant frequencies to the matrix
  for k in d:
    df[k[1]][k[0]] = d[k]

  df = df[df.columns].astype(int)

  return df

def show_heatmap(df, filename):
  """Create and plot heatmap of data

  Args:
    df: dataframe of frequencies
  Returns:
    None: Instead will plot a heatmap of the data
  """
  # :: Create heatmap and customize
  sns.set()
  ax = sns.heatmap(df, cmap="binary", robust=True, xticklabels=True, yticklabels=True)
  ax.xaxis.set_label_position('top')
  ax.xaxis.set_ticks_position('top')
  ax.spines['top'].set_visible(False)
  ax.tick_params(top=False, left=False)
  ax.xaxis.label.set_color('darkgray')
  ax.yaxis.label.set_color('darkgray')
  ax.tick_params(axis='x', colors='darkgray')
  ax.tick_params(axis='y', colors='darkgray')
  plt.xlabel('Second Letter', fontsize=18)
  plt.ylabel('First Letter', fontsize=18)
  plt.show()

  figure = ax.get_figure()
  figure.savefig(filename, dpi=400)

Main Program

This shows the code for the main program which utilizes the functions above.

def main():
  # :: Reads in text file
  # :: Counts the frequencies
  # :: Data stored in dictionary
  # :: Plots histogram of results

  freq_dict = count(read('text.txt'))
  plt.bar(freq_dict.keys(), freq_dict.values(), color='gray')
  plt.title('Character Histogram')
  plt.xlabel('Characters')
  plt.ylabel('Frequency')
  plt.show()

  # :: Reads in text file
  # :: Partitions in 2-tuples for transitions
  # :: Data stored in dictionary
  # :: Frequencies are printed to console/terminal

  dict_print(count(partition2(read('text.txt'))))

  df = to_dataframe(count(partition2(read('text.txt'))))
  print(df)

  filename = '/Users/ericpena/iCloud/Binghamton_Courses/500_Computational_Tools/HW2/heatmap.png'
  show_heatmap(df, filename)

if __name__ == '__main__':
  main()

Appendix B — Output Data

Histogram Frenquencies

{’d’: 234, ‘i’: 574, ‘f’: 233, ’e’: 958, ‘r’: 428, ’n’: 492, ‘c’: 255, ’ ‘: 1370, ‘w’: 111, ‘h’: 344, ’m’: 184, ’s’: 455, ’t’: 653, ‘o’: 475, ‘u’: 206, ‘a’: 561, ‘p’: 146, ’l’: 336, ‘y’: 77, ‘x’: 24, ‘b’: 111, ‘k’: 15, ‘g’: 103, ‘v’: 60, ‘q’: 20, ‘j’: 9, ‘z’: 11}

Heatmap Frenquencies

d --- i :	30
i --- f :	11
f --- f :	15
f --- e :	10
e --- r :	114
r --- e :	113
e --- n :	105
n --- c :	22
c --- e :	49
e ---   :	339
  --- w :	79
w --- h :	23
h --- e :	210
  --- m :	53
m --- c :	1
c ---   :	8
  --- i :	72
i --- s :	61
s ---   :	199
  --- t :	252
t --- h :	212
m --- o :	13
o --- i :	5
s --- t :	41
t --- u :	11
u --- r :	46
  --- c :	90
c --- o :	54
o --- n :	104
n --- t :	88
t --- e :	94
t ---   :	107
m --- a :	18
a ---   :	40
a --- s :	55
s --- s :	18
  --- o :	93
o --- f :	70
f ---   :	73
  --- s :	69
s --- a :	14
a --- m :	23
m --- p :	25
p --- l :	14
l --- e :	47
  --- a :	168
a --- f :	6
f --- t :	4
r ---   :	64
  --- h :	40
h --- u :	12
u --- m :	9
m --- i :	37
i --- d :	28
i --- t :	46
t --- y :	11
y ---   :	60
  --- e :	40
e --- x :	11
x --- p :	3
p --- o :	41
o --- s :	28
s --- u :	28
a --- n :	92
n --- d :	65
d ---   :	140
m --- d :	1
  --- d :	39
d --- r :	2
r --- y :	12
  --- r :	37
e --- s :	71
u --- l :	21
l --- t :	4
t --- s :	17
s --- c :	3
c --- u :	3
u --- s :	31
s --- i :	53
i --- o :	60
n ---   :	131
c --- h :	34
e --- m :	26
i --- c :	47
c --- a :	45
a --- l :	81
l ---   :	50
o --- m :	24
t --- i :	92
  --- f :	103
f --- i :	59
i --- b :	38
b --- e :	59
r --- s :	37
w --- e :	33
e --- l :	40
l --- l :	49
  --- k :	1
k --- n :	1
n --- o :	21
o --- w :	12
w --- n :	3
h --- a :	34
a --- t :	55
  --- l :	37
l --- i :	42
i --- g :	23
g --- n :	4
o --- c :	10
l --- u :	30
l --- o :	18
i --- n :	128
n --- v :	2
v --- e :	34
g --- a :	8
e --- d :	68
o --- u :	27
u --- n :	17
n --- e :	37
  --- q :	2
q --- u :	20
u --- a :	8
i --- e :	24
d --- o :	5
o --- e :	2
  --- n :	19
o --- t :	30
a --- d :	10
d --- d :	1
  --- u :	12
u --- p :	9
p ---   :	6
t --- o :	47
o ---   :	48
i --- m :	21
l --- y :	27
  --- b :	46
e --- c :	25
a --- u :	9
s --- e :	44
n --- l :	4
a --- j :	1
j --- o :	1
o --- r :	66
a --- r :	64
e --- p :	6
r --- t :	15
d --- e :	24
e --- t :	32
r --- m :	17
  --- p :	66
p --- e :	20
c --- t :	35
p --- r :	27
r --- o :	42
e --- i :	11
n --- s :	24
x --- t :	4
t --- r :	17
r --- a :	32
a --- c :	43
t --- a :	24
a --- b :	18
b --- l :	12
r --- g :	6
n --- i :	28
t --- t :	15
u --- c :	7
h ---   :	31
w --- a :	19
a --- x :	12
x --- e :	2
f --- a :	20
l --- c :	1
o --- h :	1
h --- o :	18
o --- l :	26
l --- s :	11
c --- i :	8
d --- s :	16
i --- l :	28
l --- a :	44
r --- l :	5
e --- q :	7
u --- e :	20
a --- p :	11
p --- p :	4
o --- x :	1
x ---   :	9
w --- t :	3
h --- i :	26
  --- g :	19
g --- o :	2
o --- o :	2
o --- d :	2
a --- g :	7
g --- r :	16
e --- e :	18
m --- e :	46
  --- v :	22
v --- a :	20
b --- y :	10
e --- z :	2
z ---   :	2
n --- z :	1
z --- a :	1
f --- l :	8
a --- v :	12
g --- h :	10
b --- a :	11
r --- n :	11
n --- h :	6
s --- k :	6
k ---   :	7
e --- a :	39
r --- c :	2
g --- e :	13
u --- g :	5
g --- u :	10
u --- i :	13
e --- y :	5
n --- g :	33
g ---   :	29
f --- r :	9
m ---   :	19
r --- i :	36
e --- o :	6
o --- g :	3
p --- h :	4
e --- g :	6
g --- i :	7
o --- p :	10
r --- f :	13
s --- h :	13
w --- s :	3
h --- t :	7
a --- i :	13
w --- i :	15
s --- w :	3
x --- i :	4
m --- u :	7
d --- u :	7
i --- q :	9
p --- i :	7
i --- i :	1
i ---   :	1
e --- f :	7
p --- a :	9
c --- k :	3
k --- e :	5
e --- v :	10
f --- u :	9
b --- s :	1
s --- o :	13
r --- p :	4
p --- t :	6
m --- n :	8
f --- o :	26
n --- f :	6
d --- a :	3
i --- a :	23
h --- l :	1
i --- k :	3
n --- y :	1
n --- a :	19
r --- v :	1
l --- w :	1
a --- y :	3
y --- s :	2
v --- i :	5
r --- r :	8
s --- p :	5
i --- z :	3
z --- e :	4
o --- b :	1
b --- t :	1
i --- p :	1
y --- i :	2
i --- v :	10
c --- r :	9
c --- c :	2
g --- y :	1
  --- z :	3
z --- i :	4
s --- m :	7
c --- l :	4
p --- u :	4
t --- w :	6
m --- s :	5
b --- o :	5
l --- d :	11
b --- i :	4
p --- s :	4
b --- u :	7
u --- t :	12
h --- y :	2
y --- d :	1
i --- r :	8
c --- y :	1
g --- g :	1
a --- z :	1
n --- k :	1
y --- z :	1
l --- m :	1
  --- y :	3
y --- p :	2
x --- c :	2
r --- u :	4
u --- f :	1
d --- l :	1
o --- a :	1
s --- y :	1
y --- m :	1
o --- v :	1
d --- v :	2
u ---   :	1
  --- j :	5
j --- u :	2
y --- t :	3
a --- q :	1
y --- r :	1
g --- l :	1
w --- o :	6
r --- d :	5
u --- d :	2
u --- b :	3
y --- e :	4
u --- o :	1
m --- m :	1
e --- w :	6
w ---   :	5
s --- b :	1
g --- f :	1
m --- b :	3
a --- w :	1
a --- k :	1
b ---   :	1
n --- u :	2
k --- s :	2
n --- j :	1
j --- a :	1
s --- r :	1
a --- e :	1
j --- e :	5
a --- h :	1
r --- b :	1
o --- j :	1
e --- u :	2
v --- o :	1
s --- l :	4
h --- m :	1
h --- r :	2
d --- w :	3
w --- r :	1
e --- j :	1
s --- q :	1
