Linear Regression
Mathematical Foundations
The linear model is often the first model we learn fitting data. Given a vector of inputs $X^T = (X_1, X_2, \ldots, X_p)$, we can predict the output $Y$ with the following model:
$$\hat Y = \hat \beta_0 + \sum_{j=1}^p X_j \hat \beta_j$$
Many times, it’s convenient to include the vector $\textbf{1}$ in $\textbf{X}$ and include the $\hat \beta_0$ in the vector $\hat \beta$ so we may represent this linear model in vector form as an inner product:
$$\hat Y = X^T \hat \beta$$
According to this notation, $X^T$ is a row vector and $X$ is a column vector. To achieve our fit by means of Least Squares, we choose the coefficients $\beta$ to minimize the residual sum of squares:
$$RSS(\beta) = \sum_{i=1}^N (y_i - x_i^T \beta)^2$$
In matrix form:
$$ \begin{equation} RSS(\beta) = (\mathbf{y} - \mathbf{X} \beta)^T (\mathbf{y} - \mathbf{X} \beta) \end{equation} $$
where $\textbf{X}$ is an $N \times p$ matrix with each row being an input vector and $\textbf{y}$ is an $N$-vector of the outputs. If we differentiate with respect to $\beta$, then we obtain the following equation:
$$\textbf{X}^T (\textbf{y} - \textbf{X} \beta) = 0$$
So long as $\textbf{X}^T \textbf{X}$ is nonsingular, then the unique solution is given by the following equation:
$$\hat \beta = (\textbf{X}^T \textbf{X})^{-1} \textbf{X}^T \textbf{y}$$
where $(\textbf{X}^T \textbf{X})^{-1} \textbf{X}^T \rightarrow$ pseudo-inverse or Moore–Penrose inverse
That is to say the prediction value of the $i^{th}$ input $x_i$ is $\hat y_i = \hat y(x_i) = x_i^T \hat \beta$
Practice
Say we generated our own data using the following rules:
$$y = 5 + 4x_1 + 3x_2 − 2x_3 + \epsilon$$
with $\epsilon \sim \mathcal{N}(0, 0.5^2)$, $x_1 \sim \mathcal{U}(0, 4)$, $x_2 \sim \mathcal{U}(1, 4)$, $x_3 \sim \mathcal{N}(3, 0.4^2)$, $𝑁 = 20$
$\mathcal{N} \rightarrow$ Normal Distribution and $\mathcal{U} \rightarrow$ Uniform Distribution
Preamble
import numpy as np
from matplotlib import pyplot as plt
# Constants
np.random.seed(44)
N = 20
p = 3
Generate Input Data
$$x_1 \sim \mathcal{U}(0, 4)$$ $$x_2 \sim \mathcal{U}(1, 4)$$ $$x_3 \sim \mathcal{N}(3, 0.4^2)$$
X = [[1, np.random.uniform(0, 4), np.random.uniform(1,4), np.random.normal(3, scale=0.4)] for _ in range(N)]
X = np.array(X)
X
array([[1. , 3.33936859, 1.31438831, 2.69975411],
[1. , 1.43724335, 2.82771514, 3.52654293],
[1. , 1.5751182 , 2.22721783, 3.74351348],
[1. , 3.8421049 , 2.36986333, 3.03503519],
[1. , 1.71060608, 1.3403911 , 2.52663634],
[1. , 2.54732806, 1.41743876, 3.24217837],
[1. , 1.83481628, 3.62158956, 3.33026594],
[1. , 3.45069734, 1.44654419, 2.51607458],
[1. , 2.25179983, 1.47746579, 2.91483235],
[1. , 3.17829966, 3.97246804, 2.43540034],
[1. , 3.2200688 , 2.13224622, 2.71767879],
[1. , 2.84438274, 1.21752344, 3.01007254],
[1. , 3.53044633, 3.17817346, 3.20816395],
[1. , 2.78971967, 3.79030841, 3.33008896],
[1. , 3.526691 , 1.28491595, 2.79435513],
[1. , 0.43589402, 1.46120338, 1.77052447],
[1. , 3.93713613, 1.81468046, 2.84193637],
[1. , 1.22969024, 2.26616556, 2.68184033],
[1. , 1.32398556, 2.70422612, 3.16740439],
[1. , 3.60697592, 1.0475734 , 2.90586647]])
Generate Output Data
$$y = 5 + 4x_1 + 3x_2 − 2x_3 + \epsilon$$ $$\epsilon \sim \mathcal{N}(0, 0.5^2)$$
def y(x1, x2, x3):
return 5 + 4*x1 + 3*x2 - 2*x3 + np.random.normal(0,scale=0.5)
y = [y(X[i][1], X[i][2], X[i][3]) for i in range(N)]
y = np.array(y)
y
array([17.11718468, 12.61417894, 11.49941045, 22.09382466, 11.33962392,
13.67994053, 16.56791356, 18.15543755, 12.3698036 , 24.91013347,
19.3981462 , 14.00029869, 22.23957398, 20.55036089, 18.17014326,
7.59544376, 20.78941751, 11.25433856, 12.3054156 , 15.84934396])
Fit Model (Find $\hat \beta$)
$$\hat \beta = (\textbf{X}^T \textbf{X})^{-1} \textbf{X}^T \textbf{y}$$
$$RSS(\beta) = \sum_{i=1}^N (y_i - x_i^T \beta)^2$$
Also, the unbiased estimate for $\sigma^2$:
$$\hat \sigma^2 = \frac{1}{N - p - 1} \sum_{i = 1}^N (y_i - \hat y_i)^2$$
beta_hat = (np.linalg.inv(X.T @ X) @ X.T) @ y
RSS = np.sum( (y - X @ beta_hat)**2 )
sigma2_hat = RSS/ (N - p - 1)
$\hat \beta$ = [ 4.66154677, 3.96733899, 2.93094973, -1.7340953 ]
$RSS$ = 3.5247737039908507
$\hat \sigma^2$ = 0.22029835649942817
Generate Testing Data
sample_size = 30
X_test = [[1, np.random.uniform(0, 4), np.random.uniform(1,4), np.random.normal(3, scale=0.4)] for _ in range(sample_size)]
X_test = np.array(X_test)
Find Test Values and Prediction Values
$$y_{test} = \textbf{X} \beta$$ $$y_{pred} = \textbf{X} \hat \beta$$
y_test = X_test @ [5, 4, 3, -2]
y_pred = X_test @ beta_hat

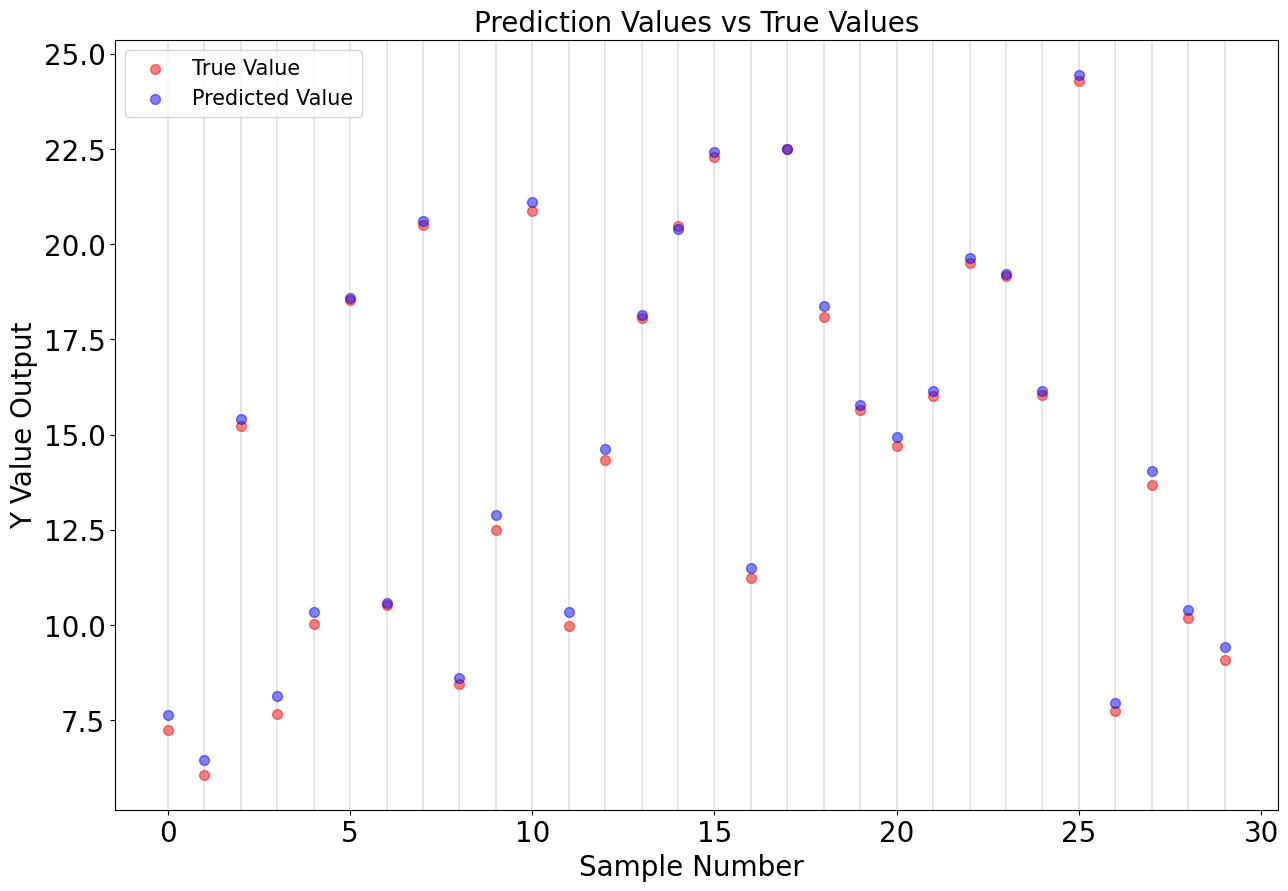

plt.figure(figsize = (15,10))
plt.scatter([i for i in range(len(y_test))], y_test, label='True Value', s=50, c='red', alpha=0.5)
plt.scatter([i for i in range(len(y_pred))], y_pred, label='Predicted Value', s=50, c='blue', alpha=0.5)
for v in [i for i in range(len(y_pred))]:
plt.axvline(x=v, alpha=0.2, color='gray')
plt.title("Prediction Values vs True Values", fontsize=20)
plt.xlabel("Sample Number ", fontsize=20)
plt.ylabel("Y Value Output", fontsize=20)
plt.xticks(size=20)
plt.yticks(size=20)
plt.legend(fontsize=15)
plt.show()
Using Scikit-Learn Library
# Import Package
from sklearn.linear_model import LinearRegression
# Fit Model
lm = LinearRegression(fit_intercept=False).fit(X, y)
print(f'beta_sklearn = {lm.coef_}')
print(f'coefficient_of_determination = {lm.score(X, y)}')
beta_sklearn = [ 4.66154677 3.96733899 2.93094973 -1.7340953 ]
coefficient_of_determination = 0.9912772830386247
y_pred_sklearn = lm.predict(X_test)

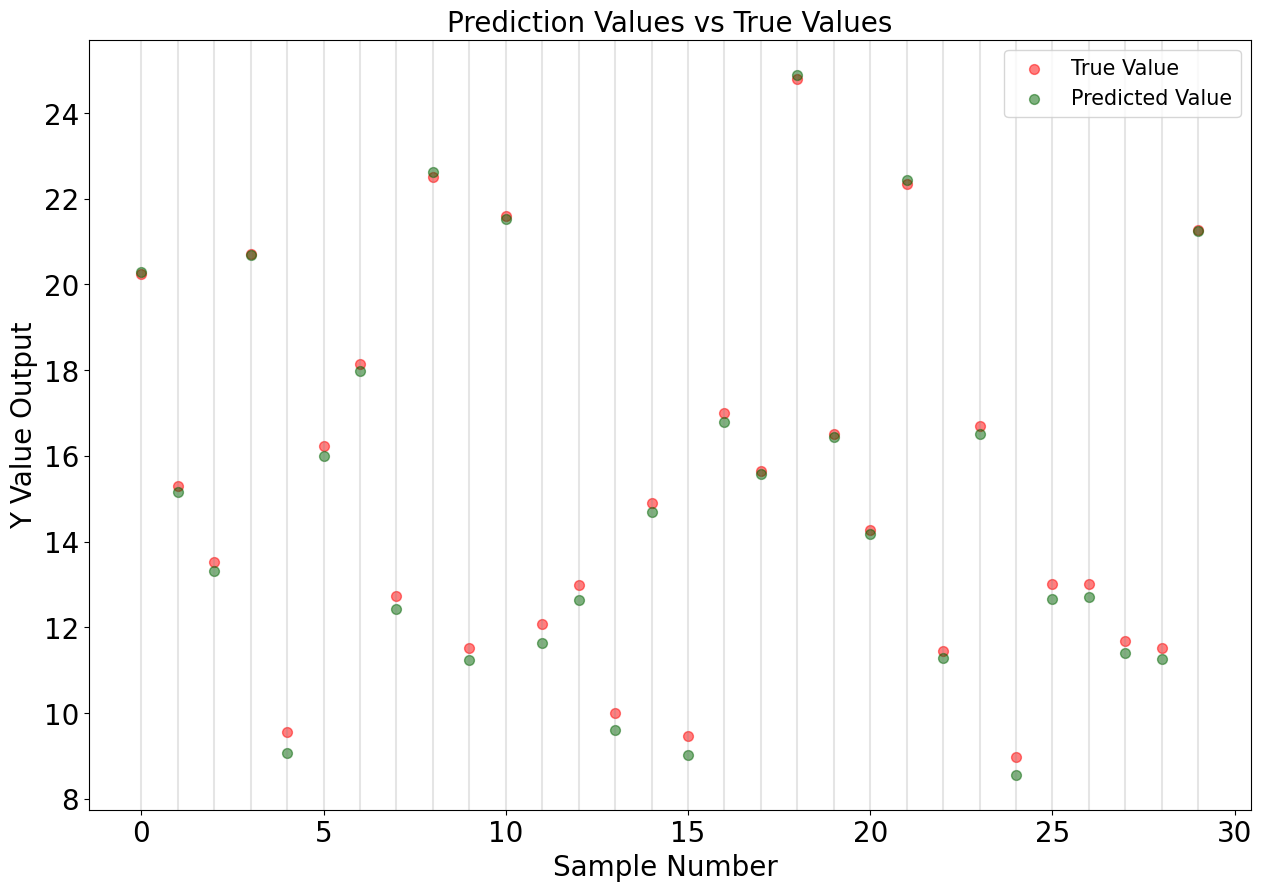

plt.figure(figsize = (15,10))
plt.scatter([i for i in range(len(y_test))], y_test, label='True Value', s=50, c='red', alpha=0.5)
plt.scatter([i for i in range(len(y_pred))], y_pred_sklearn, label='Predicted Value', s=50, c='darkgreen', alpha=0.5)
for v in [i for i in range(len(y_pred))]:
plt.axvline(x=v, alpha=0.2, color='gray')
plt.title("Prediction Values vs True Values", fontsize=20)
plt.xlabel("Sample Number ", fontsize=20)
plt.ylabel("Y Value Output", fontsize=20)
plt.xticks(size=20)
plt.yticks(size=20)
plt.legend(fontsize=15)
plt.show()
Confidence Interval for Beta
Variance of Beta
We learned above that the estimator $\hat \beta$ can written as:
$$\hat \beta = (X^T X)^{-1} X^T y$$
It is worth mentioning that this is an unbiased estimator: $E\left[\hat \beta\right] = \beta$. From this we can write:
$$Var\left[\hat \beta\right] = E\left[\hat \beta^2\right] - E\left[\hat \beta\right] \cdot E\left[\hat \beta^T\right]$$
$$Var\left[\hat \beta\right] = E\left[\left(\left(X^T X\right)^{-1} X^T y\right)^2\right] - \hat \beta^2$$
The underlying true regression is:
$$y = \textbf{X} \beta + \epsilon$$
Plug the information about $y$ into the expression for $Var\left[\hat \beta\right]$:
$$E\left[\left(\left(X^T X\right)^{-1} X^T y\right)^2\right] - \hat \beta^2 = E\left[\left(\left(X^T X\right)^{-1}X^T\left(X \beta + \epsilon\right)\right)^2\right] - \beta^2$$
$$E\left[\left(\left(X^T X\right)^{-1}X^T X \beta + (X^T X)^{-1} X^T \epsilon\right)^2\right] - \beta^2$$
where $\left(X^T X\right)^{-1}X^T X \rightarrow 1$
$$E\left[\left(\beta + (X^T X)^{-1} X^T \epsilon\right)^2\right] - \beta^2$$
$$\beta^2 + E\left[\left((X^T X)^{-1} X^T \epsilon\right)^2\right] - \beta^2$$
Since $E\left[\epsilon\right] = 0$ and the $\beta^2$ cancels out:
$$Var\left[ \hat \beta \right] = \left(\left(X^T X\right)^{-1} X^T\right)^2 E\left[\epsilon^2\right]$$
We assume that $E\left[ \epsilon^2 \right] = \sigma^2$. Therefore, the variance of $\hat \beta$ becomes:
$$Var\left[ \hat \beta \right] = \sigma^2 (X^T X)^{-1}$$
The variance of $\hat \beta$ is independent of the true coefficients $\beta$.
Confidence Interval
$$\hat \beta_j \pm t_{\frac{\alpha}{2}, N-p-1} \sqrt{C_{jj} \sigma^2}$$
where $C_{jj}$ are the diagonal elements of the covariance matrix $\rightarrow (X^T X)^{-1}$
# Variance of Beta
var_beta = np.diag(sigma2_hat * np.linalg.inv(X.T @ X ))
print(f'variance_beta = \n {var_beta}')
# Use 2.12 for the t statistic (alpha = 0.05)
beta_interval = np.c_[beta_hat - 2.12 * np.sqrt(var_beta), beta_hat + 2.12 * np.sqrt(var_beta)]
print(f'beta_interval = \n {beta_interval}')
variance_beta =
[0.5786609 0.01103045 0.01555414 0.0683109 ]
beta_interval =
[[ 3.04886778 6.27422577]
[ 3.74468396 4.18999402]
[ 2.66655126 3.19534819]
[-2.28818602 -1.18000458]]
References
- Friedman, Jerome, Trevor Hastie, and Robert Tibshirani. The elements of statistical learning. Vol. 1, no. 10. New York: Springer series in statistics, 2001.
- Majte. How to derive variance-covariance matrix of coefficients in linear regression. Cross Validated. [https://stats.stackexchange.com/q/86104](version: 2019-01-08)
