PCA with Single Value Decomposition
In another article, Principal Component Analysis was performed using Eigenvalue Decomposition. In this article we take a different approach: Single Value Decomposition. The general idea is that for any matrix we may perform Single Value Decomposition - this is guaranteed. It is a powerful tool that is used in many fields. On the other hand, the Eigenvalue Decomposition does not always exist. Eigenvalue Decomposition can only be done on square, full-rank, positive semi-definite matricies.
The general formula for Single Value Decomposition:
$$\Sigma = U \Lambda V^*$$
-
Remember that $V^* = V^T = V^{-1}$ for Real Unitary matrices
-
If we had performed SVD on the covariance of the original data, $X_c$, then we will have essentially performed the same Eigenvalue decomposition as before. Therefore, we will perform SVD on the actual input matrix $X_c$ itself. This matrix need not be square nor linearly independent for SVD to help us here.
-
A general note about
np.linalg.svd(...)
is that the $V$ that it returns, the rotation matrix of the output space, is actually $V^T$
We must start with some preliminary data generation
import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import math
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA as sklearnPCA
%matplotlib inline
np.random.seed(44)
from mpl_toolkits.mplot3d import Axes3D
Here, I generate data according to a Normal Bivariate Distribution described below:
$$X ~ N(\mu, \Sigma)\ \ \ \ \ \ \ \ \ \Sigma = \begin{bmatrix} 1 & 3\\ 3 & 10 \end{bmatrix}$$
mean = [0,0]
cov = [[1, 3], [3, 10]]
X = np.random.multivariate_normal(mean, cov, 500)

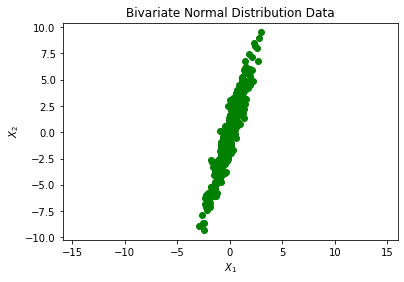

plt.plot(X[:,0], X[:,1], 'go')
plt.title('Bivariate Normal Distribution Data')
plt.xlabel('$X_1$')
plt.ylabel('$X_2$')
plt.axis('equal')
plt.show()
Next, I estimate the covariance matrix and compare it with $\Sigma$. The way to do this is listed in the 3 steps below:
- Remove the means from each data point in $X$: $X_c = (X - \bar X)$
- Calculate: $X_c^T X_c$
- Divide by the number of degrees of freedom: $(N-1)$
mx = np.mean(X, axis=0)
Xc = X - mx
C = (Xc.T@Xc) / (Xc[:,0].size - 1)
C
array([[ 0.98999791, 3.01642667],
[ 3.01642667, 10.21045548]])
We can see that the computed covariance matrix is quite similar to the original covariance. The basic idea is that cov
$\approx$ C
.
Now, I will use the svd
function from NumPy:
U, E, VT = np.linalg.svd(C, full_matrices=False)
print(f'U: Rotation of the input space\n{U}\n')
print(f'E: Scaling in the output space\n{E}\n')
print(f'VT: Rotation of the output space\n{VT}\n')
U: Rotation of the input space
[[-0.28565762 -0.95833174]
[-0.95833174 0.28565762]]
E: Scaling in the output space
[11.10958594 0.09086745]
VT: Rotation of the output space
[[-0.28565762 -0.95833174]
[-0.95833174 0.28565762]]
There are a few importnat points I should mention:
-
$U$ and $V$ are both orthonormal matrices (assuming $\Sigma$ is real)
-
The columns of $V$ and $U$ are the Eigenvectors of $X_c^T X_c$ and $X_c X_c^T$, respectively.
-
We can show what the data looks like in the new orthogonal directions
-
Using the formula is $Z_k = X V_k$
Now, let’s plot the data in the new bases:
SZ = Xc @ VT.T

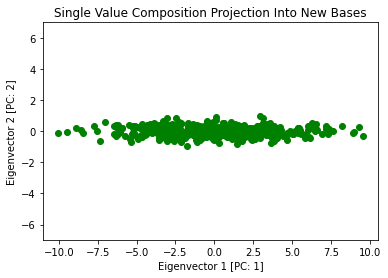

plt.plot(SZ[:,0], SZ[:,1],'go')
plt.title('Single Value Composition Projection Into New Bases')
plt.xlabel('Eigenvector 1 [PC: 1]')
plt.ylabel('Eigenvector 2 [PC: 2]')
plt.axis('equal')
plt.show()
Next we may see if this transformation preserves the variance of the original data
The general formula for Single Value Decomposition: $$\Sigma = U \Lambda V^{*}$$
Since $\Lambda$ is the diagonal matrix from decomposing $X_c$, the trace of this matrix (sum of $\Lambda_{ii}$) is the following: $$Tr(\Lambda) = \frac{d_1^2}{N-1} + \frac{d_2^2}{N-1} + \cdots + \frac{d_p^2}{N-1} = \sigma^2_{Z_1} + \sigma^2_{Z_2} + \cdots + \sigma^2_{Z_p} = Var(Z)$$
But in this case, the $\frac{d_i}{N - 1} = \lambda_i$ since SVD and Eigenvalue Decomposition is the same when done on the covariance matrix.
xVariance = np.var(X[:,0]) + np.var(X[:,1])
sVariance = np.sum(E)
print(f'Variance in newly found orthogonal space: {sVariance}')
print(f'Variance in original orthogonal space: {xVariance}')
Variance in newly found orthogonal space: 11.200453390218739
Variance in original orthogonal space: 11.178052483438304
These values are very close to one another therefore variance (information) is preserved.
More Features!
We typically have more features that we’re dealing with so let’s introduce this into what we’re doing.
N, p = 5000, 10
meanNP = [0 for _ in range(p)]
Start with randomly creating a covariance matrix
covNP = [np.round(np.random.random(p)) for _ in range(p)]
covNP = np.array(covNP)
covNP = (covNP.T @ covNP)
np.fill_diagonal(covNP, 1)
covNP
array([[1., 2., 2., 5., 3., 2., 3., 2., 4., 4.],
[2., 1., 2., 5., 4., 1., 2., 1., 5., 5.],
[2., 2., 1., 4., 3., 1., 1., 1., 3., 3.],
[5., 5., 4., 1., 7., 5., 4., 3., 8., 7.],
[3., 4., 3., 7., 1., 4., 3., 3., 5., 5.],
[2., 1., 1., 5., 4., 1., 2., 2., 3., 2.],
[3., 2., 1., 4., 3., 2., 1., 1., 4., 2.],
[2., 1., 1., 3., 3., 2., 1., 1., 1., 2.],
[4., 5., 3., 8., 5., 3., 4., 1., 1., 6.],
[4., 5., 3., 7., 5., 2., 2., 2., 6., 1.]])
min_eig = np.min(np.real(np.linalg.eigvals(covNP)))
if min_eig < 0:
covNP -= 10*min_eig * np.eye(*covNP.shape)
Create $X_{N \times p}$ input matrix with $N = 5000$ and $p = 10$ | Sample from the same Bivariate Normal Distribution
XNP = np.random.multivariate_normal(meanNP, covNP, N)
def show_pairplot():
XNP_df = pd.DataFrame(data=XNP, columns=['X' + str(i) for i in range(1,p + 1)])
sns.pairplot(XNP_df,
diag_kind = 'kde',
height = 1,
palette="husl",
kind="reg", plot_kws={'line_kws':{'color':'red'}},
markers="+")
show_pairplot()
Next we will:
- Subtract the mean from the input matrix
- Calculate the covariance matrix
mxNP = np.mean(XNP, axis=0)
XcNP = XNP - mxNP
CNP = XcNP.T @ XcNP / (XcNP[:,0].size - 1)
Now we may show the calculated covariance matrix:
plt.imshow(CNP);
We can take a look at the differences in covariances between the one used for data generation and the one from simulated data.

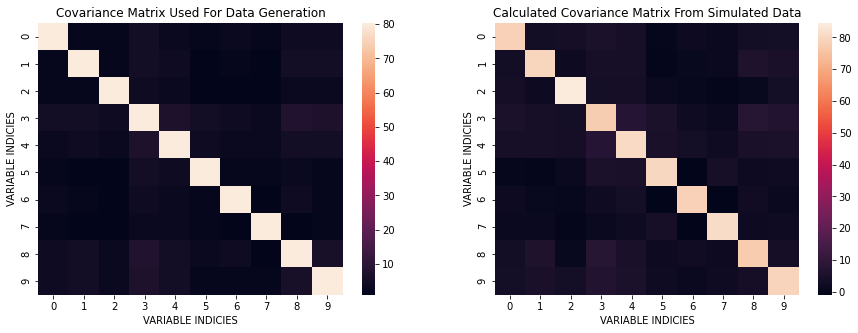

plt.figure(figsize=(15, 5))
plt.subplot(121)
sns.heatmap(covNP);
plt.title('Covariance Matrix Used For Data Generation');
plt.xlabel('VARIABLE INDICIES')
plt.ylabel('VARIABLE INDICIES')
plt.subplot(122)
sns.heatmap(CNP);
plt.title('Calculated Covariance Matrix From Simulated Data');
plt.xlabel('VARIABLE INDICIES')
plt.ylabel('VARIABLE INDICIES')
plt.show()
Here, I perform SVD on this problem:
UNP, ENP, VTNP = np.linalg.svd(XcNP, full_matrices = False)
print(f'U: Rotation of the input space\n{UNP}\n')
print(f'E: Scaling in the output space\n{ENP}\n')
print(f'VT: Rotation of the output space\n{VTNP}\n')
U: Rotation of the input space
[[ 0.00063402 -0.00223972 -0.00512473 ... -0.01283197 -0.00249885
0.00729883]
[ 0.00398954 -0.00015302 0.01754178 ... 0.02282558 -0.00582044
-0.01374769]
[-0.0113012 -0.02463393 0.00080511 ... 0.00957205 -0.00641299
-0.0096895 ]
...
[-0.01955479 -0.02007181 0.01777133 ... 0.02102236 -0.00992698
0.01587713]
[-0.01690699 -0.00056427 -0.0182975 ... 0.01105485 -0.01346963
-0.01055169]
[ 0.01078462 0.01053594 0.01148998 ... -0.00896266 -0.01786641
0.00072838]]
E: Scaling in the output space
[740.25549159 650.23894313 645.07816186 630.69002383 620.78564169
614.66865467 609.89320315 606.82283464 599.25632365 582.99093422]
VT: Rotation of the output space
[[-0.29282796 -0.30797533 -0.28041494 -0.43695612 -0.43217361 -0.23051754
-0.14681501 -0.16859798 -0.34464154 -0.37572558]
[ 0.22877855 0.08402528 0.48977653 -0.05238006 -0.04269272 -0.52141728
0.25666469 -0.59697826 -0.03962057 0.02114617]
[-0.02011072 -0.34199333 0.733593 -0.06685807 0.00687695 0.34513918
-0.30369872 0.13985565 -0.32820467 -0.03644537]
[ 0.11779768 0.51624749 0.12470635 -0.14611295 -0.32952993 -0.34994377
-0.5445956 0.33456606 0.01191737 0.20736469]
[-0.22851051 0.11055657 -0.11981725 0.23791751 -0.0332837 0.2896755
-0.53419567 -0.66916026 0.07310094 0.2027199 ]
[ 0.83224791 -0.3533297 -0.24941654 0.1600689 -0.07765862 -0.00781993
-0.27364501 -0.0552323 -0.04264587 -0.09406375]
[-0.05189883 -0.30030924 -0.15682762 -0.03306807 -0.04685503 -0.13316574
0.12933948 0.04138274 -0.36434896 0.84280043]
[-0.08953451 -0.25994462 0.15540834 0.2883993 -0.73282976 0.07156255
0.17669037 0.0684583 0.48055385 0.08993209]
[-0.27447973 -0.44545874 0.04204989 0.20817596 0.37818413 -0.54242154
-0.33505051 0.12740806 0.33807826 -0.03300058]
[-0.12933967 0.14616797 -0.02638978 0.75543034 -0.11562563 -0.17987633
0.05742537 0.1011913 -0.53539761 -0.21123923]]
UNP, ENP, VTNP = np.linalg.svd(Xc, full_matrices = False)
# print(f'U: Rotation of the input space\n{UNP}\n')
print(f'E: Scaling in the output space\n{ENP}\n')
print(f'VT: Rotation of the output space\n{VTNP}\n')
E: Scaling in the output space
[74.4559157 6.73371059]
VT: Rotation of the output space
[[ 0.28565762 0.95833174]
[ 0.95833174 -0.28565762]]
It appears that since there are many more dimensions, the variance explain is spread throughout the different orthogonal components. The question becomes, is the amount of varation in all these components equal to the amount of variation from the original dataset. To answer this we will sum up all the diagonal entries from the $\Lambda$ matrix like previously discussed. The important formula we will use is the following:
$$Tr(\Lambda) = \frac{d_1^2}{N} + \frac{d_2^2}{N} + \cdots + \frac{d_p^2}{N} = \sigma^2_{Z_1} + \sigma^2_{Z_2} + \cdots + \sigma^2_{Z_p} = Var(Z)$$
Amount of Variation From SVD Components:
varNP = np.sum(np.square(ENP) / N)
Amount of Variation From The Original Simulated Data
varXcNP = np.sum([np.var(XcNP[:,i]) for i in range(p)])
Comparison Of The Two Values Above
print(f'Variance in newly found orthogonal space: {varNP}')
print(f'Variance in original orthogonal space: {varXcNP}')
Variance in newly found orthogonal space: 797.4134455431736
Variance in original orthogonal space: 797.413445543174
-
As we can see above, the amount of variation explained is still preserved even when switching to a new orthogonal basis
-
Now let’s look into how much variation is explained by each variable
tvar = varNP
vlist = (np.square(ENP)/N)
cumvar = np.cumsum(vlist)
print(vlist)
print(cumvar)
print(np.sum(vlist / tvar))
[109.59563857 84.56213663 83.22516698 79.55398123 77.07496258
75.56351101 74.39394385 73.64679053 71.82162829 67.97568588]
[109.59563857 194.1577752 277.38294218 356.93692341 434.011886
509.575397 583.96934085 657.61613138 729.43775967 797.41344554]
1.0

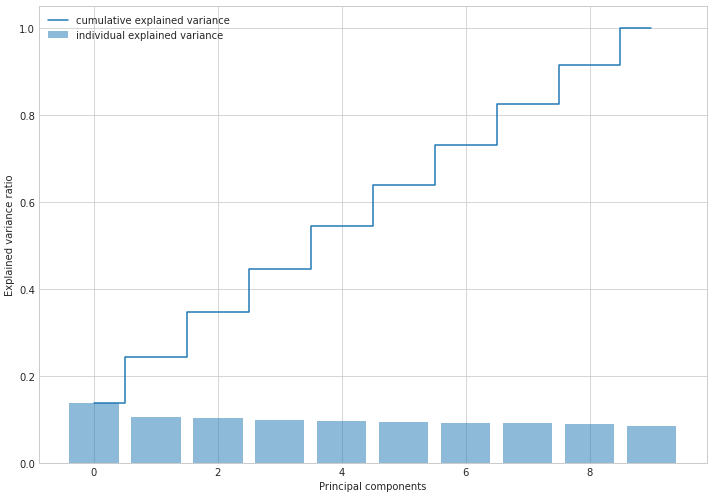

plt.figure(figsize=(10, 7))
with plt.style.context('seaborn-whitegrid'):
plt.bar(range(p), vlist / tvar, alpha=0.5, align='center', label='individual explained variance')
plt.step(range(p), cumvar / tvar, where='mid', label='cumulative explained variance')
plt.ylabel('Explained variance ratio')
plt.xlabel('Principal components')
plt.legend(loc='best')
plt.tight_layout()
We can even check if this decomposition was successful. Let’s reconstruct our original data by multiplying all three matrices we obtain from the decomposition.
$$U \Lambda V^T \rightarrow X$$
ENPmatrix = np.diag(ENP)
XNPconstructed = UNP @ ENPmatrix @ VTNP
frobenius = np.linalg.norm(XcNP - XNPconstructed, 'fro')
print(f'Frobenius Norm value between constructed Xc from the decomposition and the original dataset: {frobenius}')
Frobenius Norm value between constructed Xc from the decomposition and the original dataset: 4.281900349435277e-12
A Frobenius Norm value this low shows that the decomposition was performed correctly
$$||A||_F = \sqrt{Tr\left(AA^H\right)}$$
